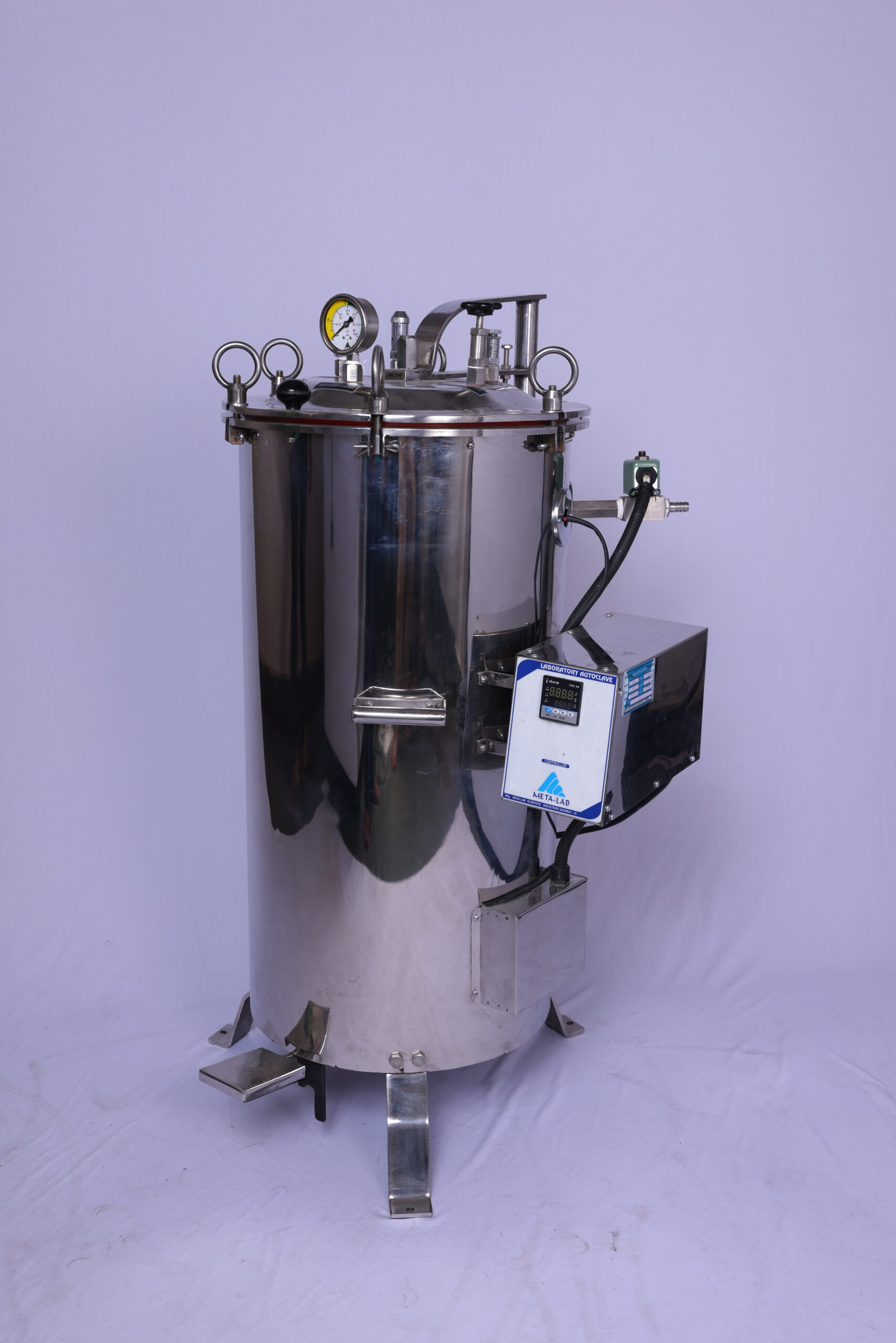

Laboratory autoclave fully automatic {msi-75}
- Home
- Our Products
- Autoclave
- Laboratory autoclave fully automatic {msi-75}
Technical Specification
- Double walled construction fully made of Stainless. Steel 304
- Top cover is die pressed to domed shape
- supporting flange is made of thick S.S. flat
- Entire joint argon arc wielded & grounded to smooth bur free finish.
- The Autoclave is supported on the S.S. legs.
- It is supplied with two safety valves, Pressure gauge, steam release valve & S.S. basket & drain valve at bottom.
- The Autoclave is supplied Digital Temp Controller with inbuilt timer,
- low level cut off device
- With auto purging system with solenoid valve.
- The Autoclave is hydraulically tested for one & half times the operating pressure.
- Temperature Range : Up to 125°C
- Operating Temperature : 121°C to 123°C.
- Operating Pressure : 15 & 18 PSI.
|
Working Size in Cms
|
Volume Ltr.
|
Rating
|
|---|---|---|
|
30 X 50
|
35
|
3.0K.W.
|
|
30 X 55
|
55
|
3.0K.W.
|
|
45 X 60
|
95
|
4.0K.W.
|
|
55 X 75
|
180
|
6.0K.W.
|
