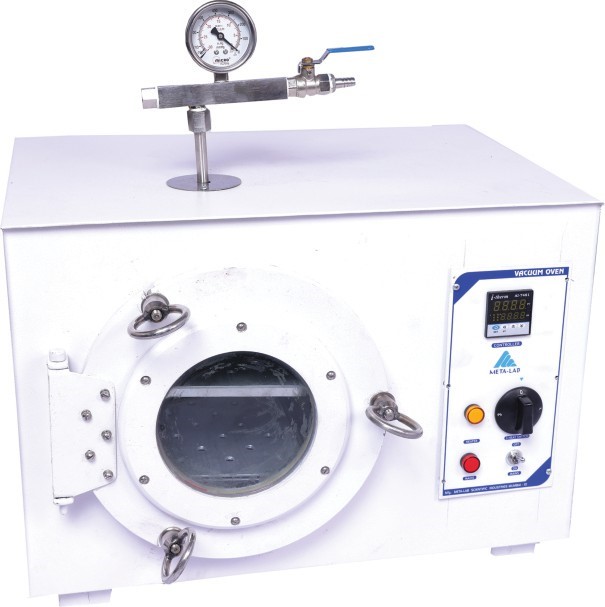

MSI - 12 VACUUM OVEN ROUND
- Home
- Our Products
- VACUUM OVEN ROUND
- MSI - 12 VACUUM OVEN ROUND
Technical Specification
- Double walled construction.
- Inner chamber made of thick gauge Stainless Steel
- Exterior made of Galvanized sheets powder coated.
- Heating elements made from best quality
- Nichrome wire wounded around the chamber & covered with ceramic blankets.
- Microprocessor based Auto Tune PID Digital Temperature Controller
- Simplex A class transition joint PT 100 sensor.
- Supplied with Aluminium tray, vacuum gauge, vacuum cock, toughened glass window in center of the door to see through the chamber.
- Temperature Range : 50.0°C to 200.0°C
- Temperature Resolution : 0.1°C
- Control Accuracy : ± 2.0°C or better.
- Maximum Vacuum : 760 mm/Hg
- Power Supply : 230V Single Phase AC
|
Chamber Size (cms)
|
Exterior dimension (cms)
|
Capacity (Ltr)
|
Net Weight (kg)
|
No. of shelves
|
Rating
|
|---|---|---|---|---|---|
|
23 Dia x 30 Depth
|
58 x 43 x 44
|
12
|
30
|
2 Nos
|
500 W
|
|
30 Dia x 38 Depth
|
67 x 52 x 52
|
26
|
45
|
3 Nos
|
750 W
|
|
38 Dia x 45 Depth
|
75 x 60 x 60
|
51
|
60
|
3 Nos
|
1250 W
|
Optional Accessories:
- Inbuilt timer
- Safety temp. controller
- Single channel Data logger to Print records
- RS 485 for PC communication with 21 CFR part 11 compliance Software
