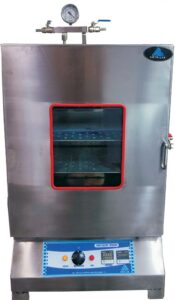

MSI - 71 VACUUM OVEN RECTANGULAR GMP MODEL

  • Home
  • Our Products
  • VACUUM OVEN ROUND
  • MSI - 71 VACUUM OVEN RECTANGULAR GMP MODEL

Technical Specification

  • Double walled construction.
  • Fully made of Stainless Steel 304
  • Inner chamber made of thick gauge Stainless Steel
  • Exterior matt finished
  • Door is made of Stainless steel with toughened glass in centre.
  • Heating elements made from best quality Nichrome wire
  • Heaters wounded around the chamber & covered with ceramic blanket.
  • Microprocessor based Auto Tune PID Digital Temperature Controller.
  • Simplex A class transition Joint PT 100 sensor
  • Supplied with Aluminium tray, vacuum gauge, vacuum cock
  • Temperature Range : 50.0°C to 200.0°C
  • Temperature Resolution : 0.1°C
  • Control Accuracy : ± 2.0°C
  • Maximum Vacuum : 760 mm/Hg
  • Power supply : 230V AC 50HZ single phase
pro-5
Chamber Size (cms)
Exterior dimension (cms)
Volume (Ltr)
Weight (kg)
Rating
No. of shelves
30 x 30 x 30
54 x 42 x 75
27
50
750 W
2
35 x 35 x 35
59 x 47 x 80
45
55
1000 W
2
35 x 35 x 50
59 x 47 x 95
60
70
1200 W
3
45 x 45 x 45
69 x 57 x 90
90
90
1300 W
3
45 x 45 x 60
69 x 57 x 105
120
110
1500 W
4

Optional Accessories:

  • Inbuilt timer
  • Safety temp. controller
  • Single channel Data logger to Print records
  • RS 485 for PC communication with 21 CFR part 11 compliance Software
