MSI - 72 VACUUM OVEN ROUND GMP MODEL

  • Home
  • Our Products
  • VACUUM OVEN ROUND
  • MSI - 12 VACUUM OVEN ROUND

Technical Specification

  • Double walled construction.
  • Fully made of stainless steel 304
  • Inner chamber made of thick gauge Stainless Steel
  • Exterior matt finished.
  • Heating elements made from best quality Nichrome wires
  • Nichrome wire wounded around the chamber & covered with ceramic blankets.
  • Microprocessor based Auto Tune PID Digital Temperature Controller
  • Simplex A class transition joint PT 100 sensor.
  • Supplied with Aluminium tray, vacuum gauge, vacuum cock, toughened glass window in center of the door to see through the chamber.
  • Temperature Range : 50.0°C to 200.0°C
  • Temperature Resolution: 0.1°C
  • Control Accuracy : ±2.0°C or better
  • Maximum Vacuum : 760mm/Hg
  • Power Supply : 230V Single Phase AC

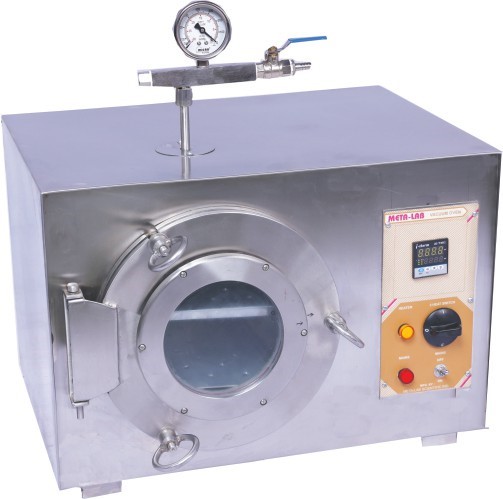

pro-2
Chamber Size (cms)
Exterior dimension (cms)
Capacity (Ltr)
Net Weight (kg)
No. of shelves
Rating
23 Dia x 30 Depth
58 x 43 x 44
12
30
2 Nos
500 W
30 Dia x 38 Depth
67 x 52 x 50
26
45
3 Nos
750 W
38 Dia x 45 Depth
75 x 60 x 60
51
60
3 Nos
1250 W

Optional Accessories:

  • Inbuilt timer
  • Safety temp. controller
  • Single channel Data logger to Print records
  • RS 485 for PC communication with 21 CFR part 11 compliance Software
