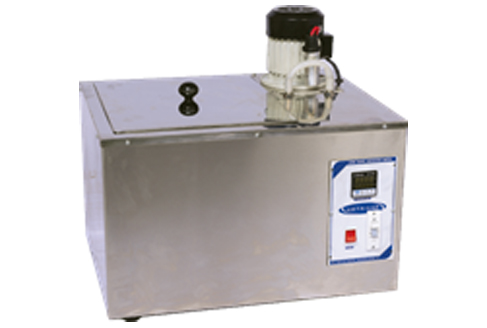

MSI - 8 CONSTANT TEMPERATURE WATER BATH
- Home
- Our Products
- VACUUM OVEN ROUND
- MSI - 8 CONSTANT TEMPERATURE WATER BATH
Technical Specification
- Double walled construction.
- Fully made of Stainless Steel 304
- Inner mirror finished & exterior matt finished
- Gap between the two walls filled with glass wool insulation to avoid heat loss.
- Heating is by specially designed immersion type water heaters.
- Microprocessor based Auto Tune PID Digital Temperature Controller.
- Simplex A class transition joint PT 100 sensor.
- Motor with Pump is mounted on a base & fitted on the side of the bath.
- Pump is provided for stirring & external recirculation.
- Lid & Heater cover made of Stainless Steel.
- Temperature Range : 5.0°C Above Ambient to 95.0°C
- Temperature Resolution : 0.1°C
- Control Accuracy : ± 0.5°C
- Power Supply : 230V Single Phase AC
|
Working Size (cms)
|
Exterior Dimension (cms)
|
Volume (Ltr)
|
Weight (kg)
|
Rating
|
Price ₹
|
|---|---|---|---|---|---|
|
30 x 25 x 20
|
55 x 35 x 45
|
15
|
20
|
2000 W
|
|
|
35 x 30 x 25
|
60 x 40 x 50
|
25
|
25
|
2500 W
|
|
|
45 x 35 x 30
|
70 x 45 x 55
|
45
|
30
|
3000 W
|
|
Optional Accessories:
- Electronic digital timer Range 0 to 999 minutes :
- Single channel Data logger to Print records
- RS 485 for PC communication with 21 CFR part 11 compliance Software
