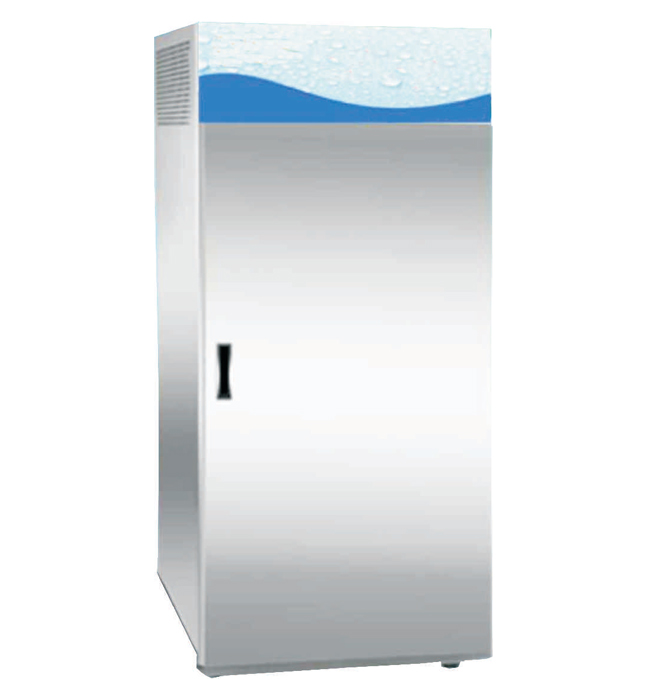

MSI - 89 HUMIDITY CHAMBER (GMP Model) Make : Meta-Lab |HSN Code: 84198990

  • Home
  • Our Products
  • Humidity Chamber
  • MSI - 89 HUMIDITY CHAMBER (GMP Model) Make : Meta-Lab |HSN Code: 84198990

Technical Specification

  • Double walled construction.
  • Fully made of Stainless Steel 304 mirror finished
  • Exterior Matt Finished.
  • Gap between the two walls filled with Puf insulation.
  • Inner acrylic door & external metal door with magnetic gasket & lock.
  • Cooling is by hermetically sealed compressor,
  • CFC free refrigerant.
  • Heating is by specially designed Air heaters.
  • Forced Air circulating System with fan for better temperature uniformity
  • Microprocessor based Auto Tune PID Digital Temperature Controller
  • Led display for Set & Actual both.
  • Illumination by tube.
  • Supplied with S.S. rod shelves.
  • Temperature Range : 5.0°C to 60.0°C
  • Humidity Range : 95% RH
  • Temperature Resolution : 0.1°C.
  • Control Accuracy : ± 0.5°C
  • Power Supply : 230V Single Phase AC
Capacity (Ltr)
Chamber Size (cms)
Exterior Dimension
Net Weight (kg)
No of Shelves
Rating
6 Cu Ft 170
50 x 50 x 70
67 x 95 x 132
80
3
1250 W
12 Cu Ft 330
60 x 60 x 90
77 x 105 x 152
110
4
1500 W
16 Cu Ft 450
60 x 60 x 125
75 x 105 x 180
150
5
2000 W
21 Cu Ft 600
60 x 80 x 125
75 x 125 x 180
200
5
2500 W

Optional Accessories:

  • Safety Temp. controller (Recommended by us)
  • Single Channel Data logger with printer output
  • RS 485 for PC communication with 21 CFR part 11 compliance Software
  • 7” HMI touch screen display
