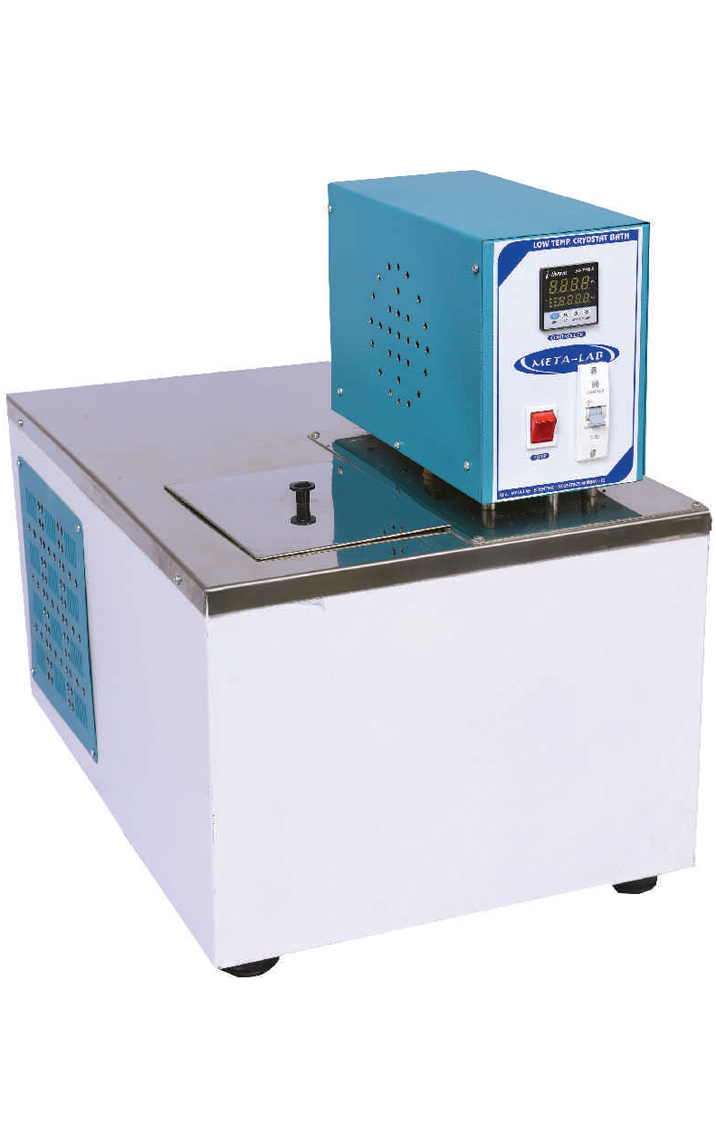

MSI - 90 WATER BATH CHILLER Make : Meta-Lab |HSN Code:84198990
- Home
- Our Products
- Water Bath Chiller
- MSI - 90 WATER BATH CHILLER Make : Meta-Lab |HSN Code:84198990
Technical Specification
- Table top model
- Double walled construction with small foot print
- Inner made of Stainless Steel 304.
- Exterior made of Galvanized sheets powder coated.
- Gap between the two walls filled with Puf insulation.
- Motor with pump is mounted on a base & fitted on the side of the bath for recirculation
- Lid made of Stainless Steel
- Specially design tubular water heaters
- Cooling is by hermetically sealed compressor
- Microprocessor based Auto Tune PID Digital Temperature Controller
- Simplex A class transition joint PT 100 sensor.
- Drain valve provided to empty the water bath
- Temperature Range : 0.0°C to 40.0°C
- Temperature Resolution : 0.1°C
- Control Accuracy : ± 0.5°C
- Power Supply : 230V Single Phase AC
|
Bath Capacity
|
Size (W x D x H) Cms
|
Exterior dimension (cms)
|
Rating
|
Weight (kg)
|
|---|---|---|---|---|
|
4 Ltr
|
15 x 15 x 15
|
42 x 60 x 53
|
1000W
|
30
|
Optional Accessories:
- Single Channel Data logger with printing arrangement
- RS 485 for PC communication with 21 CFR part 11 compliance Software
