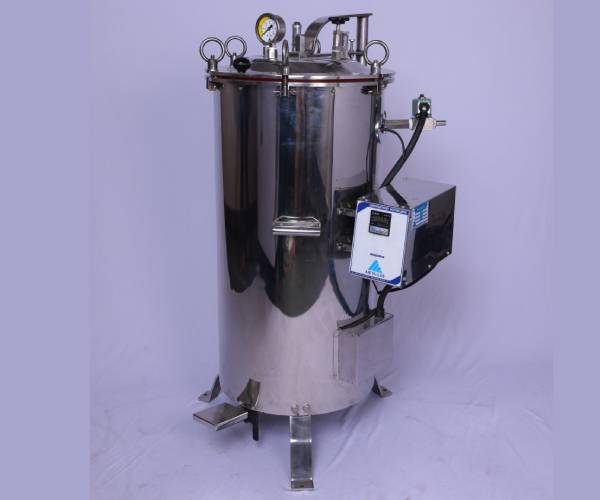

Laboratory Autoclave Fully Automatic {msi-75}

Technical Specification

• Double walled construction fully made of Stainless. Steel 304
• Top cover is die pressed to domed shape.
• supporting flange is made of thick S.S. flat
• Entire joint argon arc wielded & grounded to smooth bur free finish.
• The Autoclave is supported on the S.S. legs.
• It is supplied with two safety valves, Pressure gauge, steam release valve & S.S. basket & drain valve at bottom.
• The Autoclave is supplied Digital Temp Controller with inbuilt timer,
• low level cut off device
• With auto purging system with solenoid valve.
• The Autoclave is hydraulically tested for one & half times the operating pressure.
• Temperature Range : Up to 125°C
• Operating Temperature : 121°C to 123°C.
• Operating Pressure : 15 & 18 PSI.
