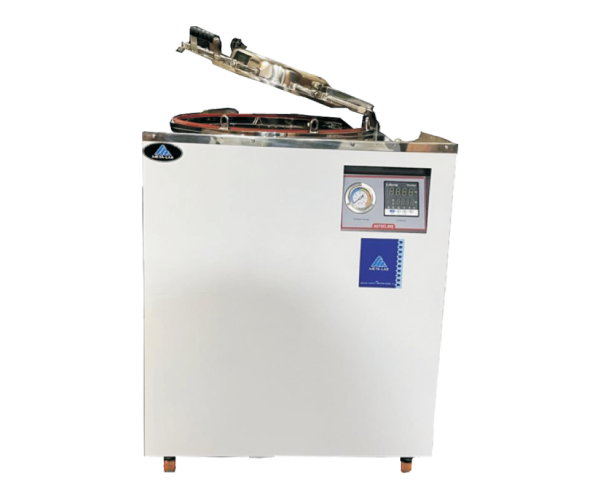

MSI - 96 LABORATORY AUTOCLAVE FULLY AUTOMATIC SINGLE LEVER HIGH SPEED (134°C)

Technical Specification

• Square Model Inner Cylindrical.
• Double walled construction inner made of Stainless Steel 304.
• Exterior made of MS Powder Coated.
• The Gap Between the wall filled with Glasswool insulation.
• Lid is made of thick gauge stainless steel 304.
• Lid opening is with single lever.
• Entire joint argon arc.
• The Autoclave is fitted with castor wheel for easy movability.
• The Lid is fitted with two safety valves, S S pressure guage & vacuum breaker valve
• The lid does not open during the sterilization cycle.
• Specially design silicon gasket.
• Solenoid valve provided for auto purging of the steam.
• Heating is by specially design industrial heaters.
• Safety thermostat is provided for safety of heaters.
• Microprocessor based auto tune PID controller
• Simplex A class PT 100 sensor.
• Low Water level cut off device for protection of heaters.
• Safety thermostat.
• Supplied with stainless steel Basket.
• The Autoclave is hydraulically tested for one & half times the operating pressure.
• Temperature Range : Upto 134°C
• Operating Temperature : 121°C/134°C
• Operating Pressure : 15 & 30 PSI
• Power Supply : 230V Single Phase AC
