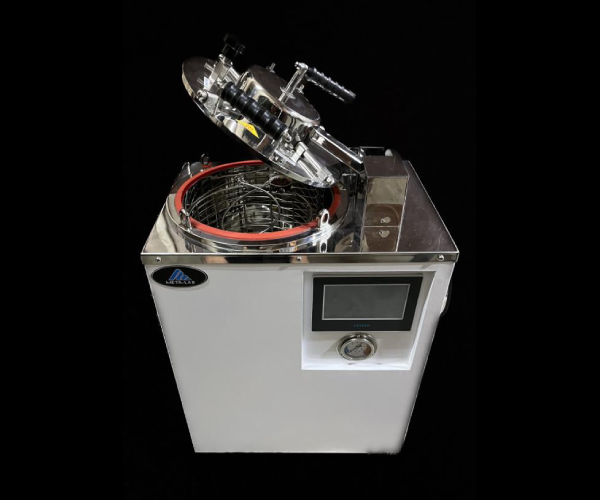

Laboratory autoclave fully automatic single lever {msi-92}

Technical Specification

• Square Model Inner Cylindrical.
• Double walled construction inner made of Stainless Steel 304.
• Exterior made of MS Powder Coated.
• The Gap Between the wall filled with Glasswool insulation.
• Lid is made of thick gauge stainless steel 304.
• Lid opening is with single lever.
• Entire joint argon arc wielded & grounded to smooth bur free finish.
• The Autoclave is fitted with castor wheel for easy movability.
• The Lid is fitted with two safety valves, SS pressure gauge & vacuum breaker valve.
• Lid interlocking switch is provided for safety purpose
• The lid does not open during the sterilization cycle.
• Specially design silicon gasket.
• Solenoid valve provided for auto purging of the steam.
• Heating is by specially design industrial heaters.
• Safety thermostat is provided for safety of heaters.
• Microprocessor based auto tune PID controller.
• Simplex A Class PT 100 Sensor.
• Low Water level cut off device for protection of heaters.
• Safety thermostat
• Supplied with stainless steel Basket.
• The Autoclave is hydraulically tested for one & half times the operating pressure.
• Temperature Range : Upto 125°C
• Operating Temperature : 121°C/123°C.
• Operating Pressure : 15 & 18 PSI
• Power Supply : 230V Single Phase AC
