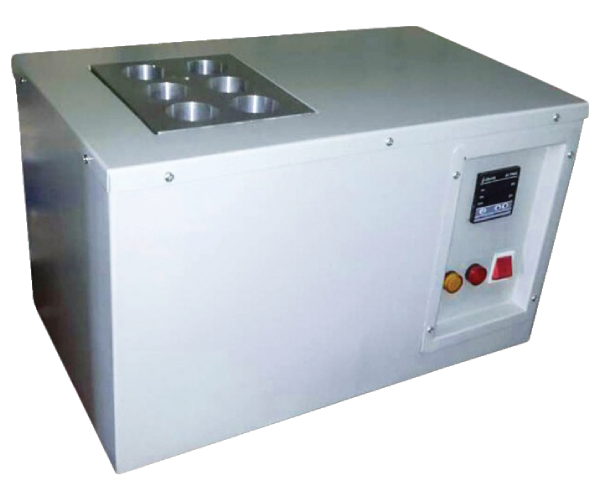

MSI - 84 C O D DIGESTER

Technical Specification

• Double walled constructed with insulation for minimum heat loses increases the efficiency of the system.
• Aluminium block with holes of 40 mm diameter x 80 mm depth is used to hold upto 15 COD tubes.
• Aluminium block is heated to maintain temperature up to 180°C
• Microprocessor based Auto Tune PID Digital Temperature controllers for uniformity in all the samples.
• Selectable time up to 120 min with alarm is provided to set the digestion period.
• After digestion, analyses the sample with colorimetric or titrimetric method.
• Supplied with glass tubes, tube stand, air condenser and condenser stand.
• Temperature range : Ambient up to 180.0°C
• Sensor : Simplex PT100 sensor
• Holes Size : 40mm dia x 80 mm dia
• Volume : 20 ml each
• Power Supply : 230V Single Phase AC
