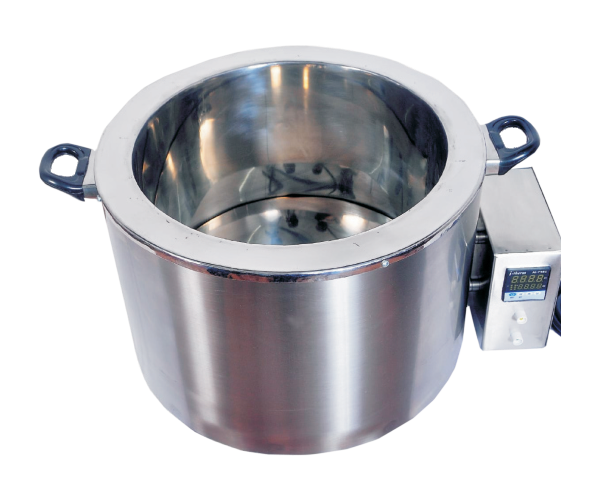

MSI - 78 WATER BATH / OIL BATH

Technical Specification

• Double walled construction.
• Round in shape
• Fully made of Stainless Steel 304
• Inner argon welded mirror finish.
• Exterior matt finished.
• The gap between the two walls filled with glass wool insulation.
• Clear bottom
• A uniquely designed Bath.
• Ensure no heater burn out to lack of water/oil.
• Heating is by specially designed heaters
• Externally fitted to avoid burn out to lack of water/oil.
• Microprocessor based Auto Tune PID Digital Temperature Controller.
• Simplex A class transition joint PT 100 sensor.
• Floating overshoot alarm
• Temperature Range : Ambient up to 300.0°C
• Temperature Resolution : 0.1°C
• Control Accuracy : ± 2.0°C
• Power Supply : 230V Single Phase AC
