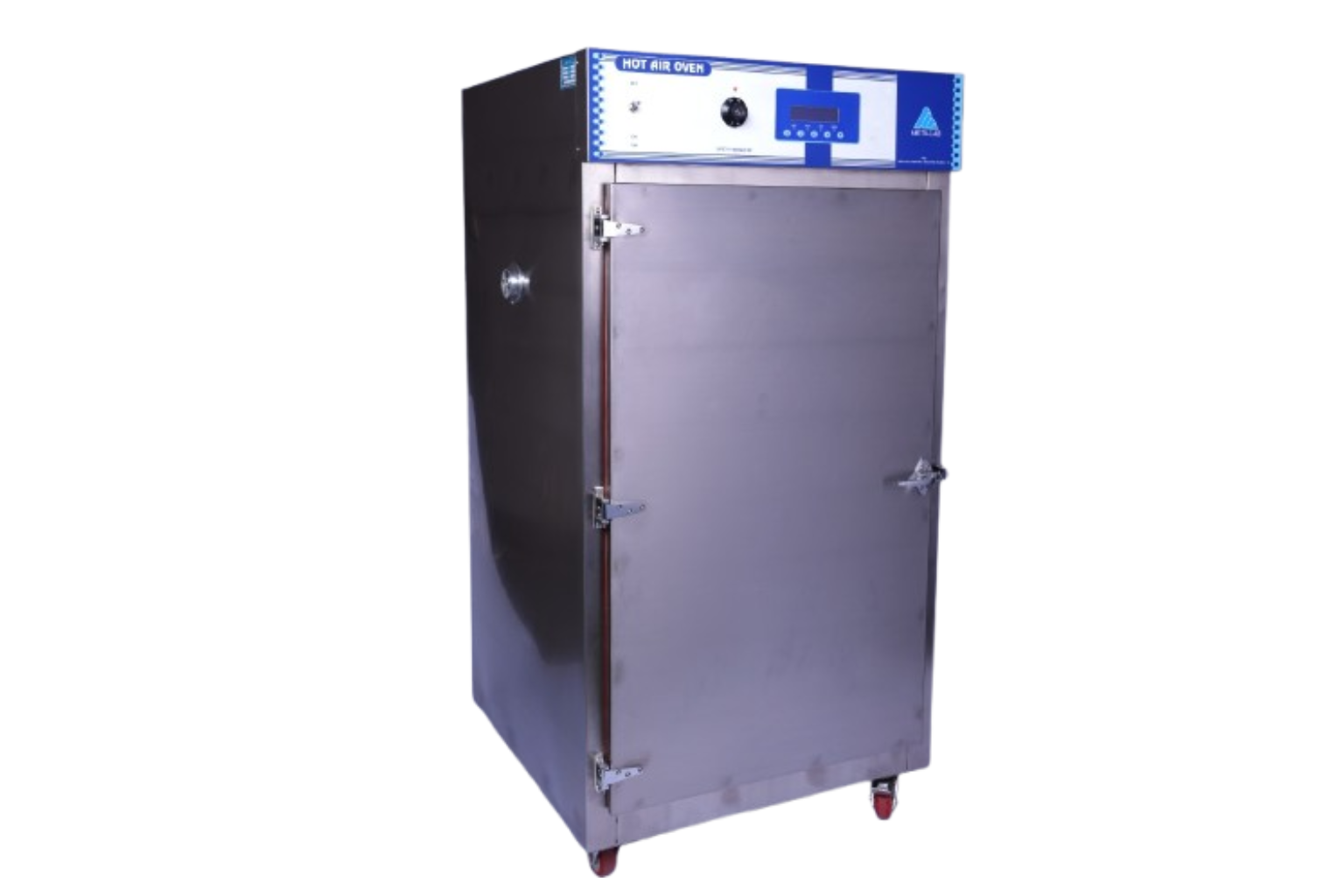

Technical Specification
- Double walled construction.
- Completely made of Stainless Steel 304.
- Inner mirror finished & exterior matt finished.
- Gap between the two walls filled with glasswool insulation.
- Fully insulated door with silicon gasket brass lock hinges
- Heating is by specially designed energy efficient Air heaters fitted at bottom.
- Supplied with SS rod shelves & Aluminum ventilator.
- Microprocessor based Auto Tune PID Temperature Controller.
- Simplex A class transition joint PT 100 sensor.
- Temperature deviation alarm.
- Safety thermostat.
- Forced Air Circulating System with fan for temperature uniformity
- Temperature Range : 50°C to 250°C
- Temp Resolution : 0.1°C
- Control Accuracy : ± 2.0°C or better.
- Power Supply : 230V Single Phase AC
| CHAMBER SIZE IN CMS | VOLUME | EXTERIOR DIMENSION IN CMS | WEIGHT (KG) | RATING | NO OF SHELVES |
|---|---|---|---|---|---|
| 45 x 45 x 45 | 90 ltr | 54 x 54 x 80 | 60 | 1000 W | 3 |
| 45 x 45 x 60 | 120 ltr | 65 x 65 x 105 | 70 | 1250 W | 4 |
| 60 x 60 x 60 | 216 ltr | 80 x 80 x 105 | 90 | 1500 W | 4 |
| 60 x 60 x 90 | 330 ltr | 80 x 80 x 135 | 110 | 2000 W | 5 |
Optional Accessories:
- Inbuilt timer
- Castor wheels for easy movability.
- Single channel Data logger to Print records
- RS 485 for PC communication with 21 CFR part 11 compliance Software
- 7” HMI touch screen display
