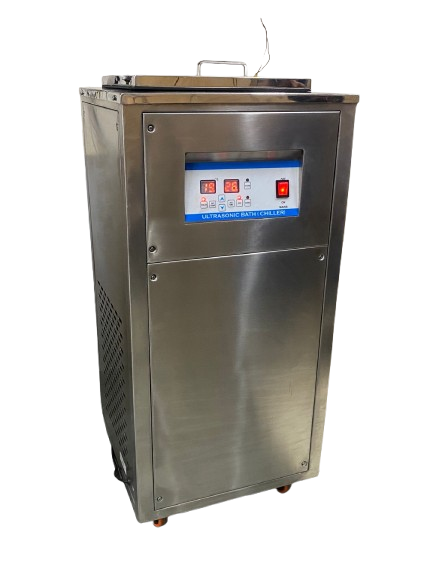

MSI - 100 ULTRASONIC BATH WITH CHILLER

Technical Specification

• Fully made of Stainless Steel 304.
• The Gap between the wall filled with PU insulation.
• Cooling is by hermetically sealed compressor.
• Refrigerant R134a.
• Built in generator.
• Gas cool condenser with motor fan.
• Degassing included.
• Sandwich-type PZT Transducers bonded to the bottom of the tank.
• SS lid and wire mesh basket made of SS 304.
• Digital Timer with runtime of 0-99 Mins.
• Drain Outlet included.
• Overload protection by Fuses / MCBs.
• Ultrasonic Frequency : 33 +/- 3 Khz.
• Chiller Temperature : +5.0 to 35.0°C
• Control Accuracy : +/- 1.0°C
• Compressor Power : 450 / 535 W
• Input Supply : 230V Single Phase AC
